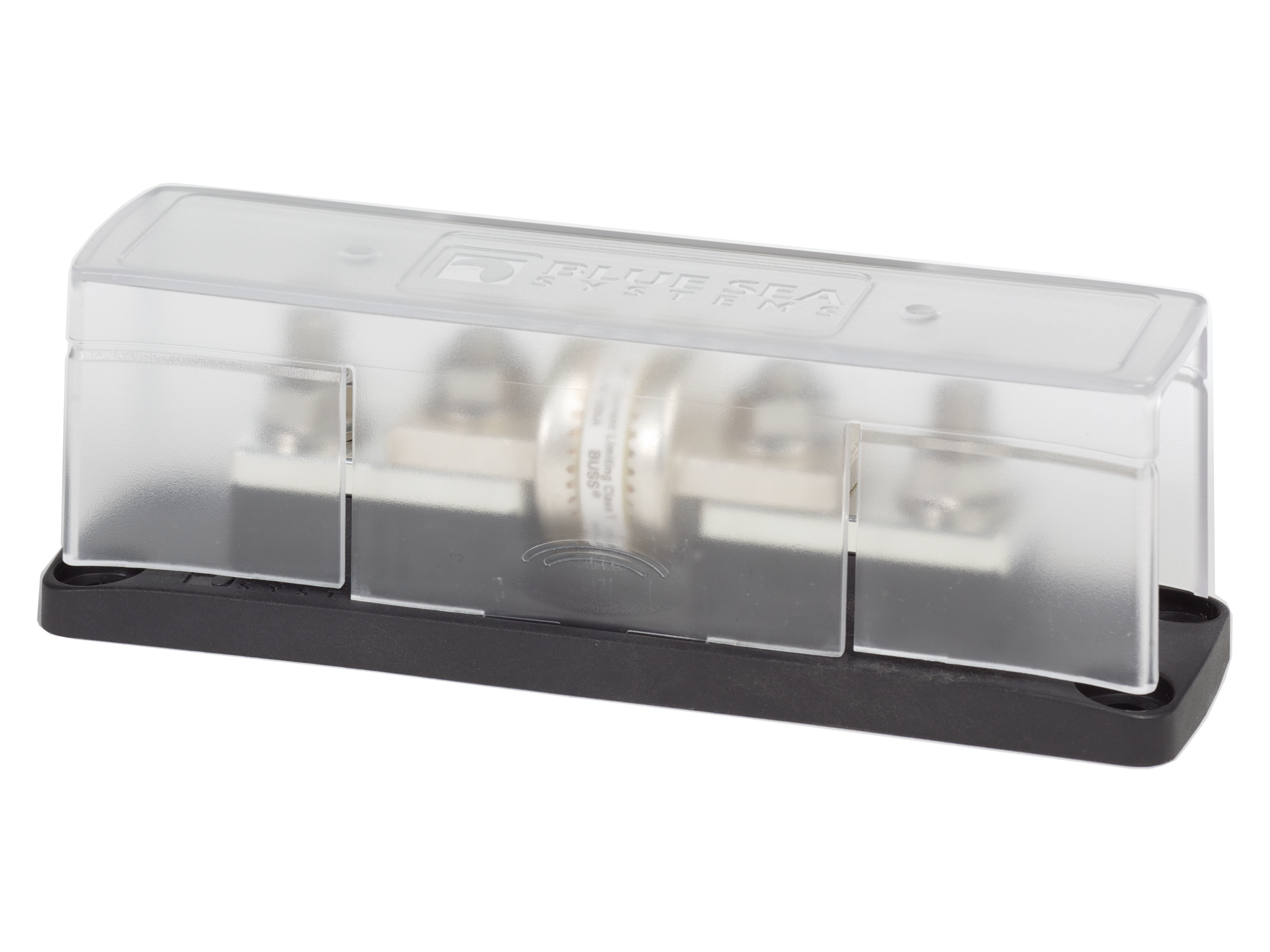

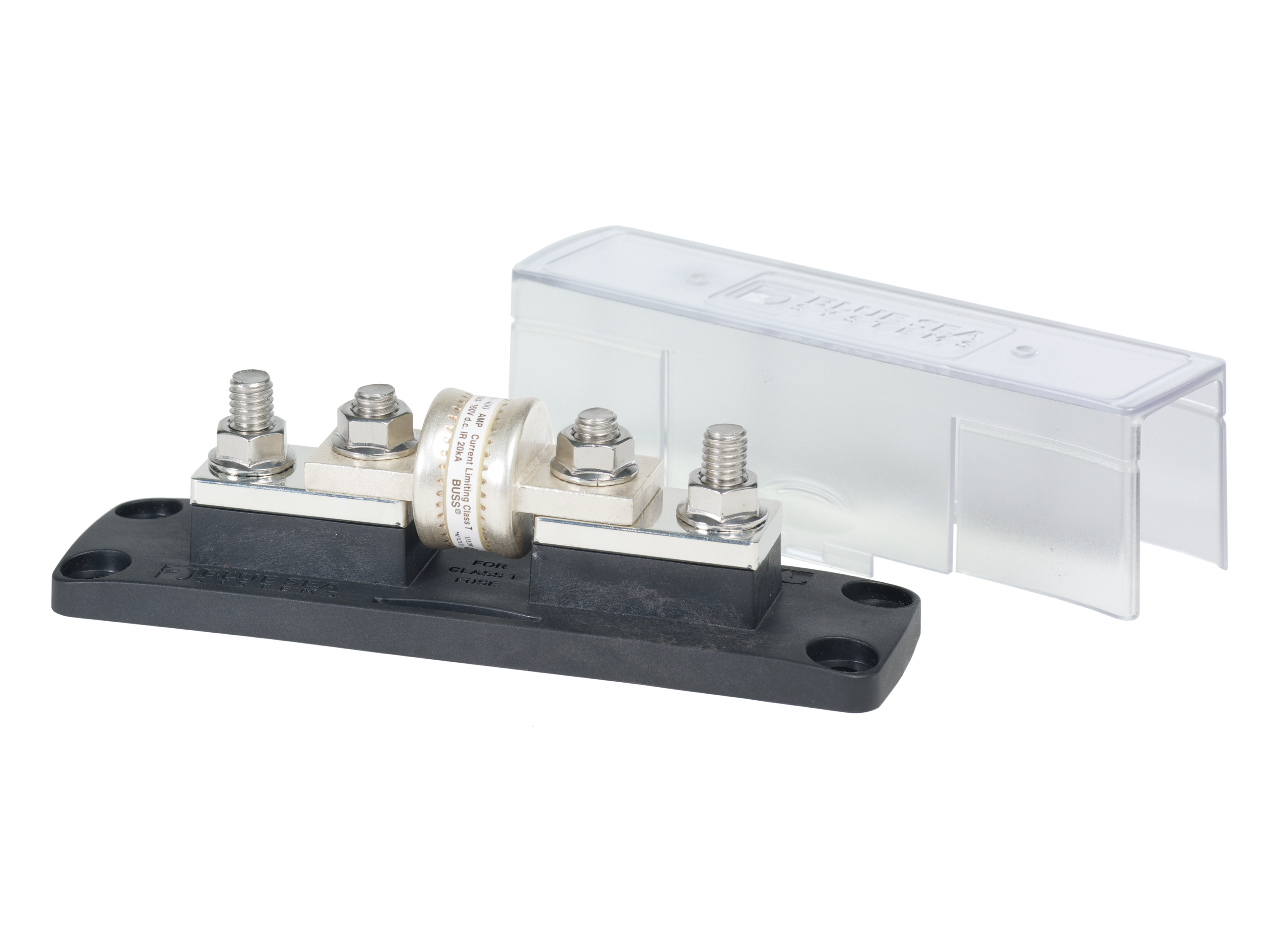

Blue Sea Systems Fuse Block Class T 225-400 Amp

The Blue Sea Systems Class T Fuse Block is compatible with Class T fuses and provides high speed circuit protection. The insulating cover meets ABYC/USCG insulation requirements and has breakouts for wire access in any direction needed. The fuse block accepts 3/8" (M10) ring terminals, and insert molded studs ensure secure fuse mounting. The stainless steel studs are resistant to corrosion and high torque for allowing better electrical connection.

Key Features:

• 400 amps maximum
• Maximum operating voltage: 160V DC
• UL listed to standard 248-15; DC tested to UL standard 198L
• 20,000 amp interrupting capacity

• The fuse system recommended by most inverter manufacturers for high speed response to short circuits
• Clear insulating cover, satisfies ABYC/USCG requirements
• For use on systems up to 160 Volts DC
• Large 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG
• Large heat dissipating tin-plated copper mounting blocks
• Fuse sold separately
