11-Gallon Mercedes Sprinter Undercarriage Water Tank (SP-UC-11)

11-Gallon Mercedes Sprinter Undercarriage Water Tank (SP-UC-11)

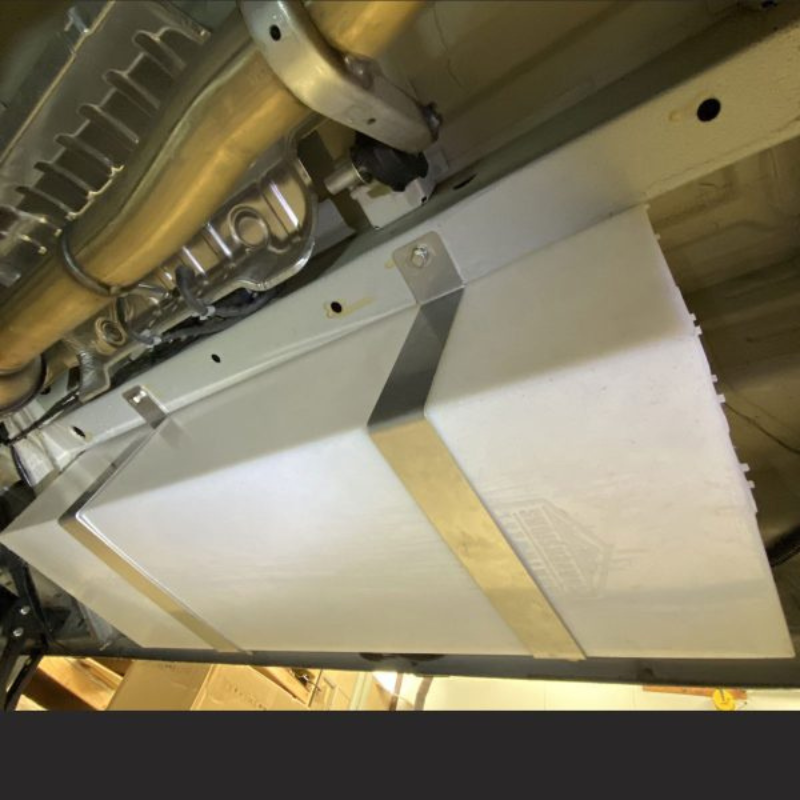

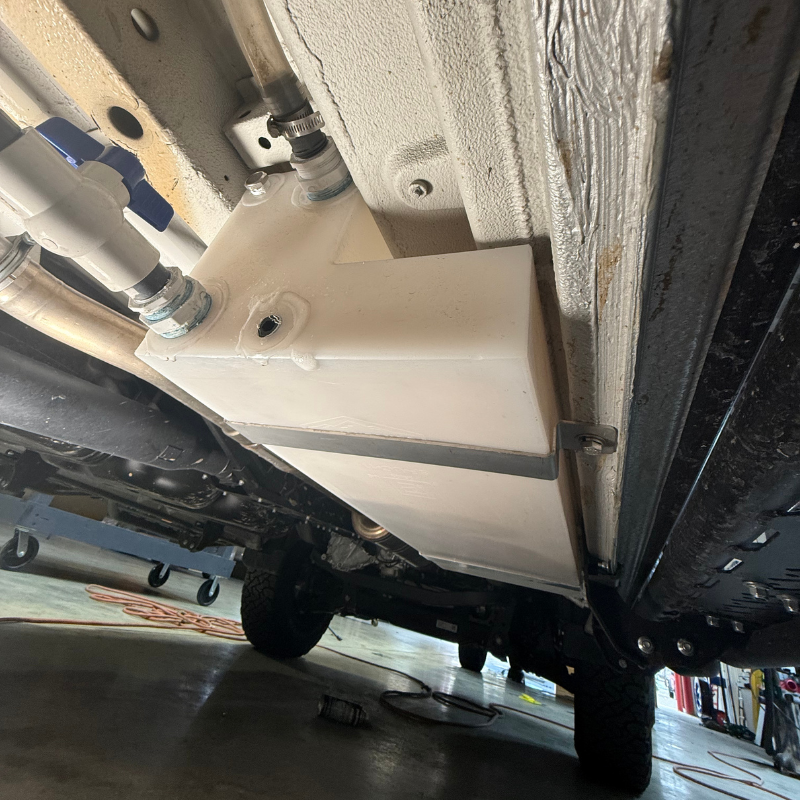

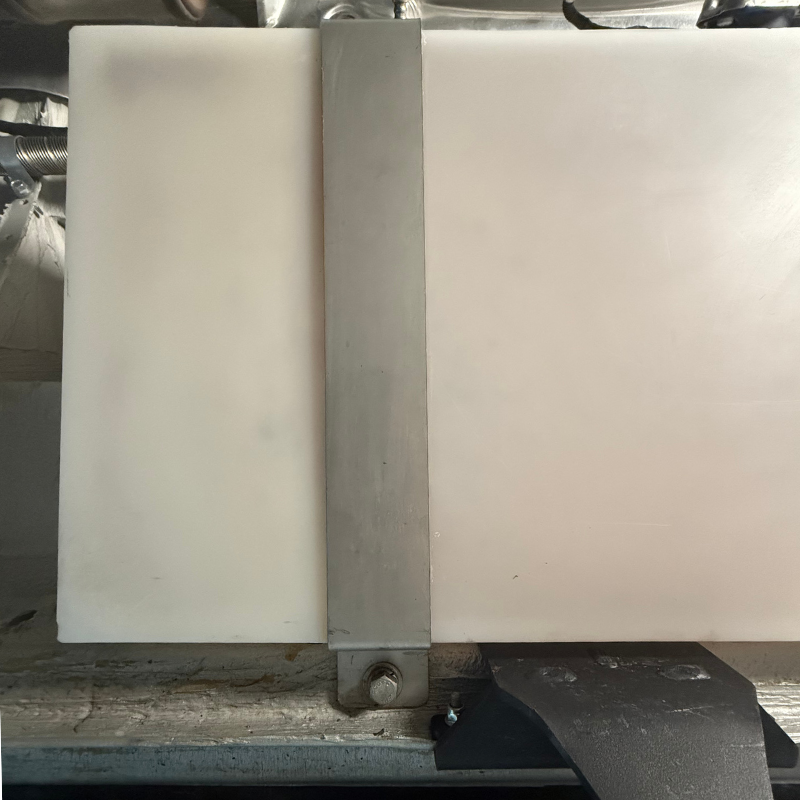

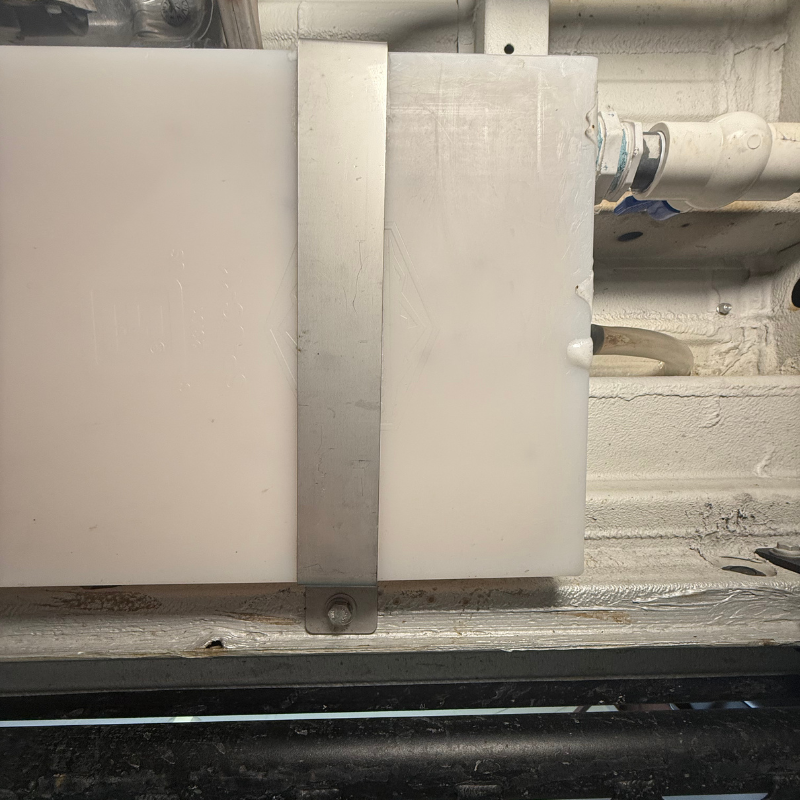

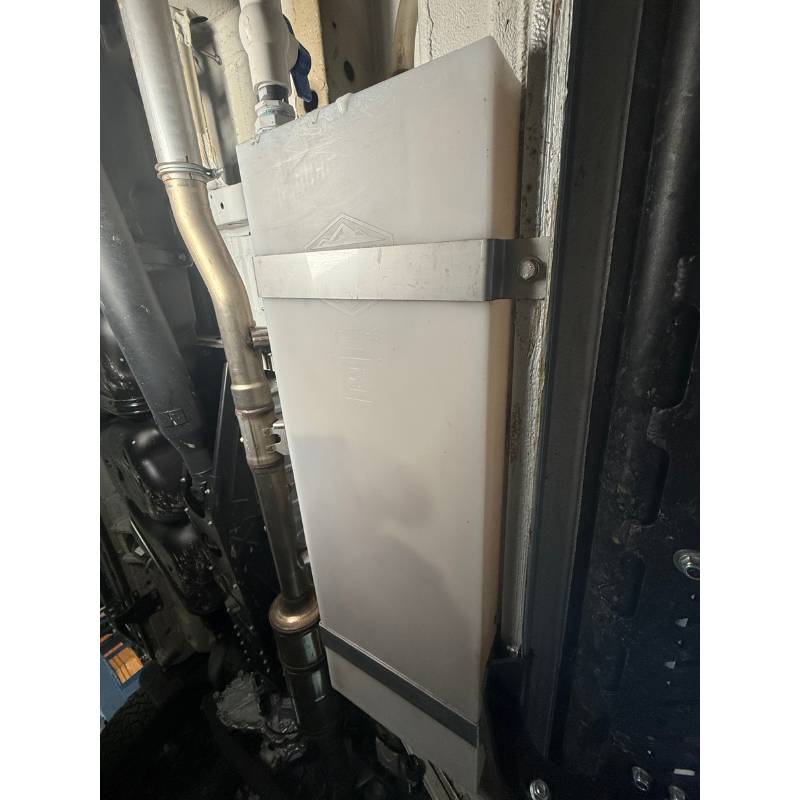

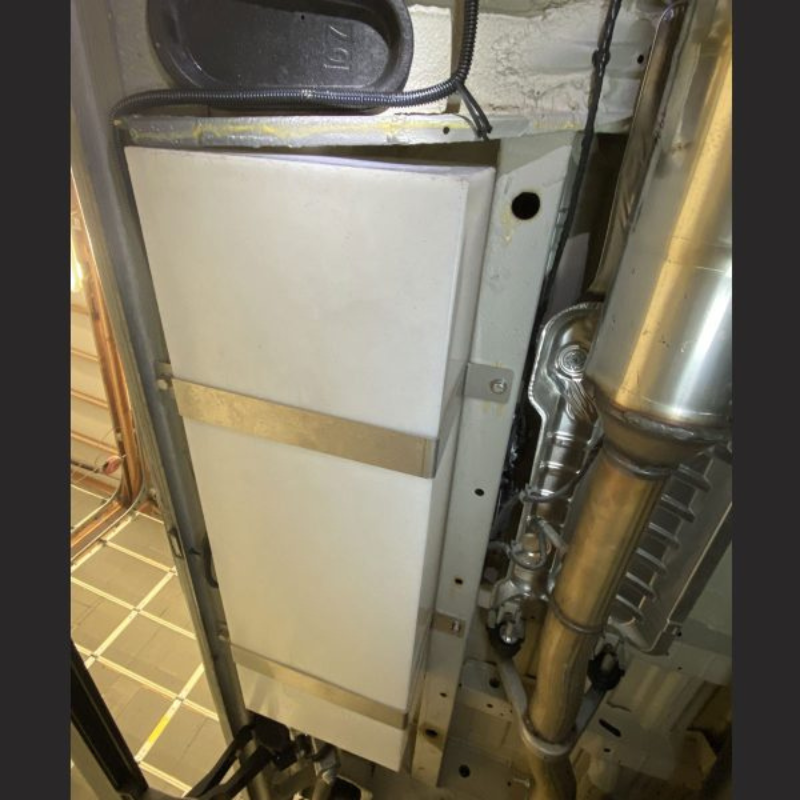

Claim the unused space under your slider door without drilling a single new hole in your floor. This tank mounts between the Sprinter's frame and the passenger-side slider door step cutout, using otherwise wasted undercarriage space. Ideal as a dedicated grey tank paired with a larger fresh water setup, or used standalone for fresh water.

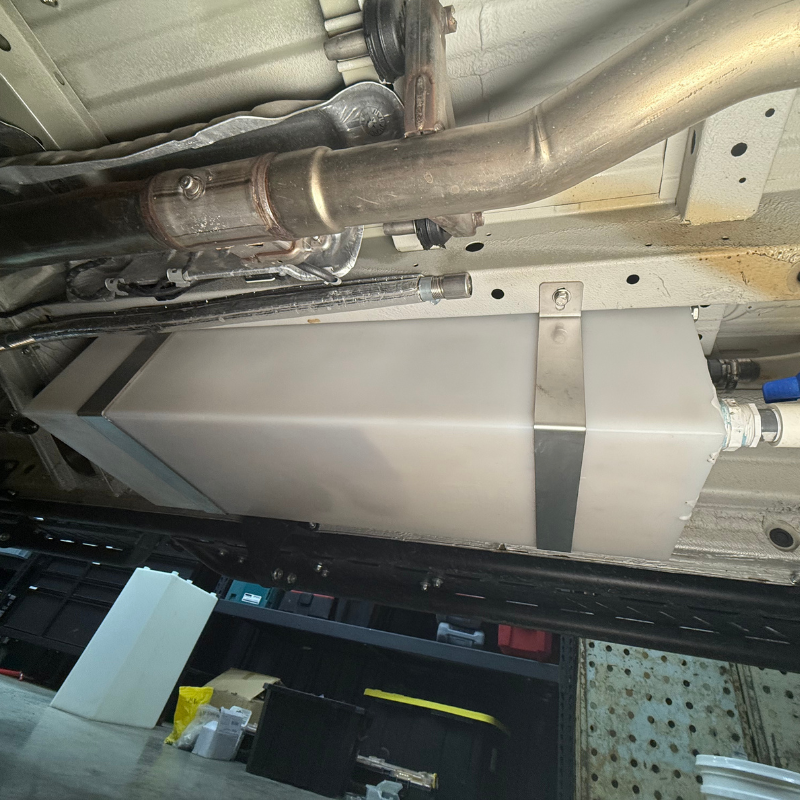

⚠️ Gas engine Sprinters: The exhaust runs closer to the frame on gas models. A heat shield (not included) should be installed between the tank and exhaust before use.

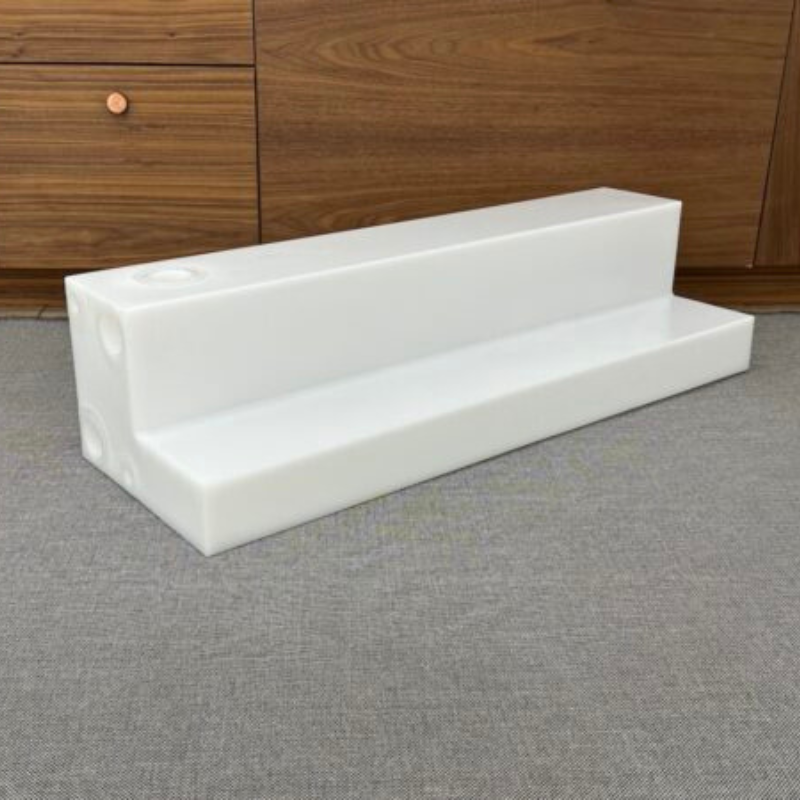

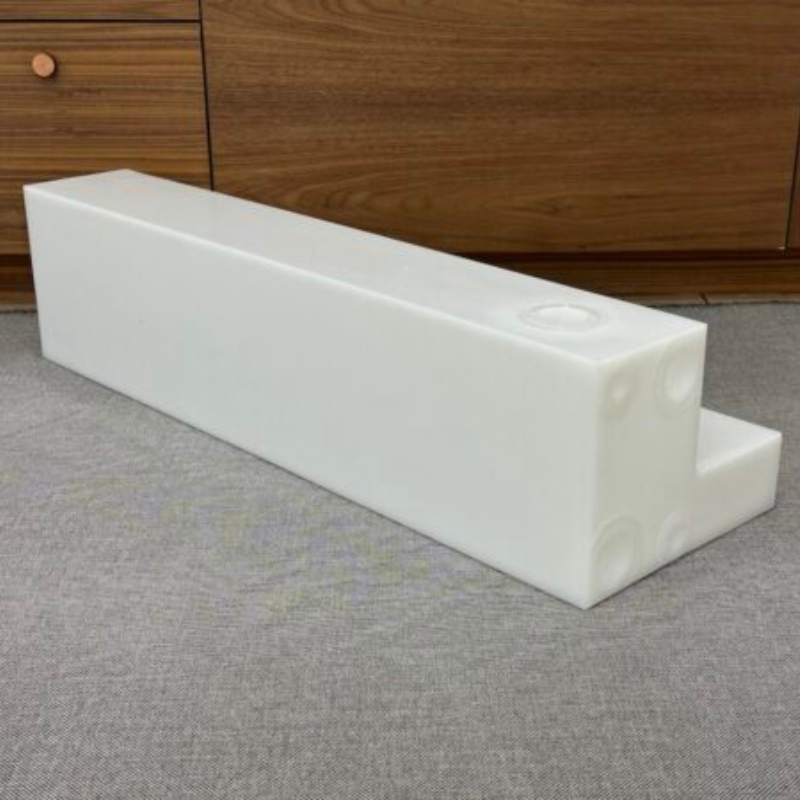

Dimensions & Weight

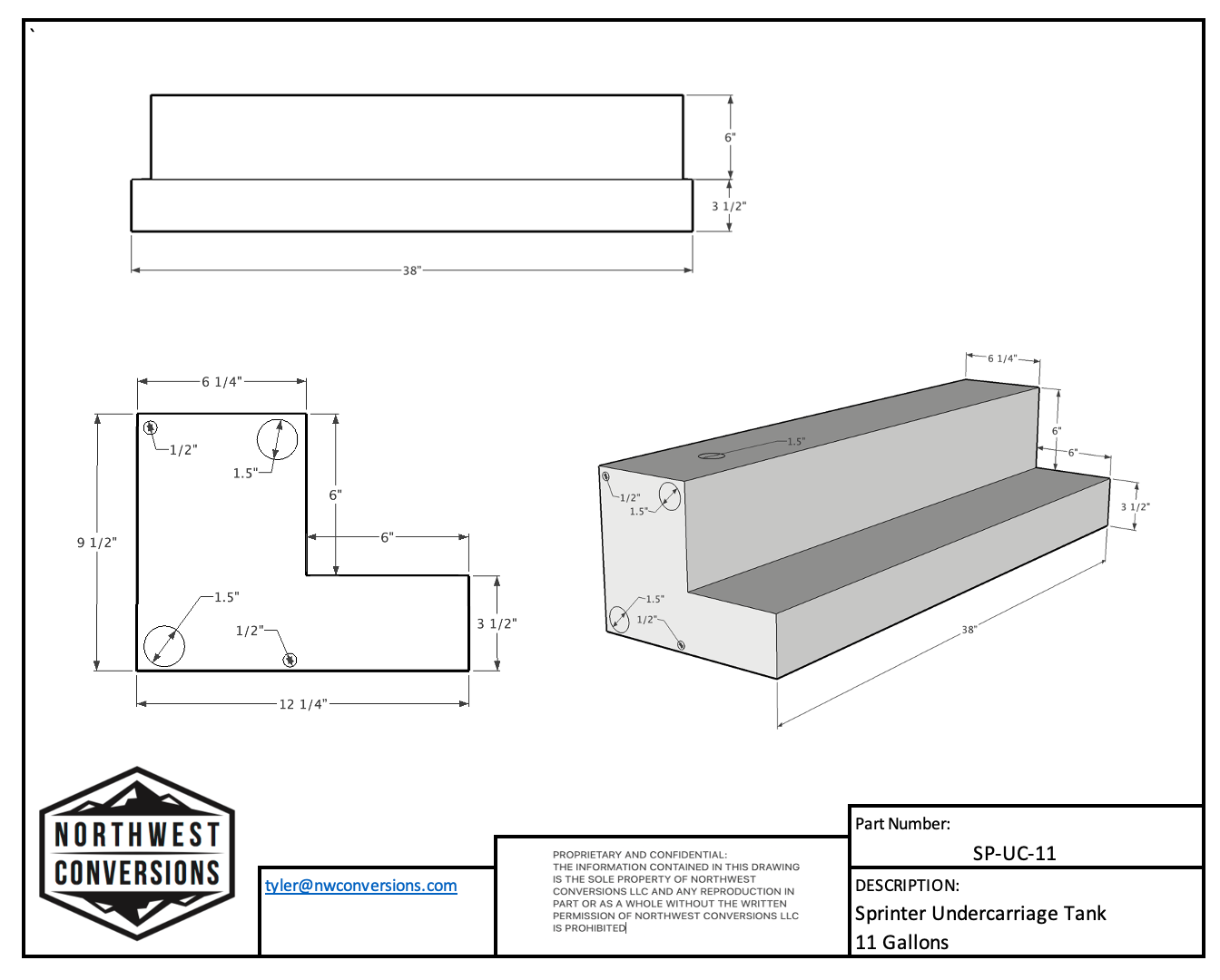

• Size: 37.5" long × 12.25" wide × 9.25" tall
• Capacity: 11 gallons
• Weight: 12 lbs

Ports & Plumbing

• (1) 1.5" NPT port on the rear-facing end
• (2) 1/2" NPT ports on the rear-facing end
• (1) 1.5" NPT port on top
• Not designed for pressurized systems, must be vented

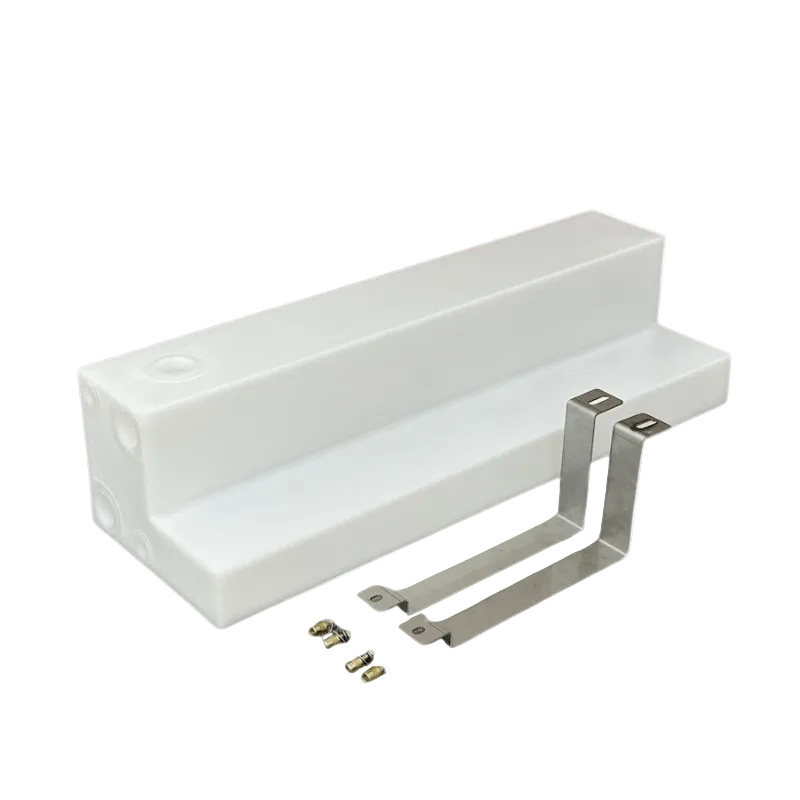

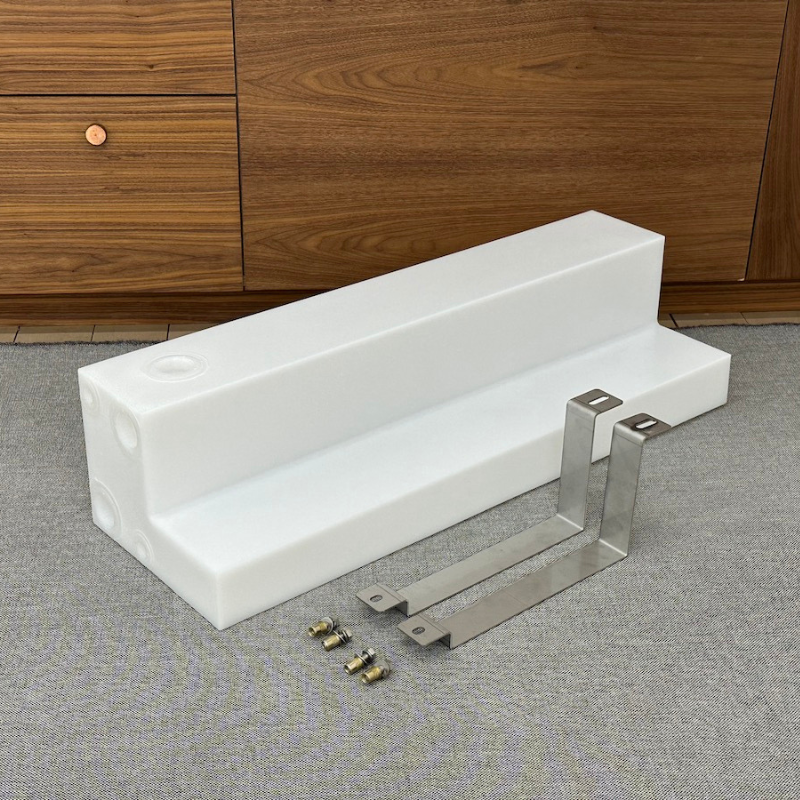

Included With Every Order

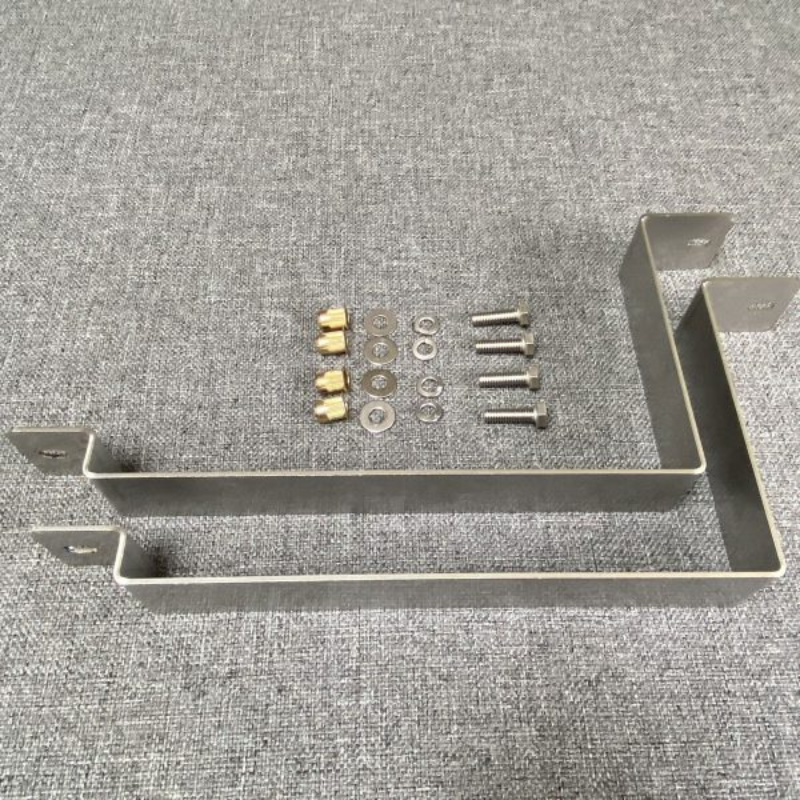

• (2) stainless steel laser-cut mounting straps
• Stainless 3/8" hardware and 3/8" rivnuts
• Note: rivnut tool required, not included

Materials & Certifications

• BPA-free, food-grade polyethylene
• IAPMO TS 4 Certified
• Made in the USA

Vehicle Compatibility

• Mercedes Sprinter 1500/2500/3500 (2007-present), wheelbases 144", 170", and 170" EXT

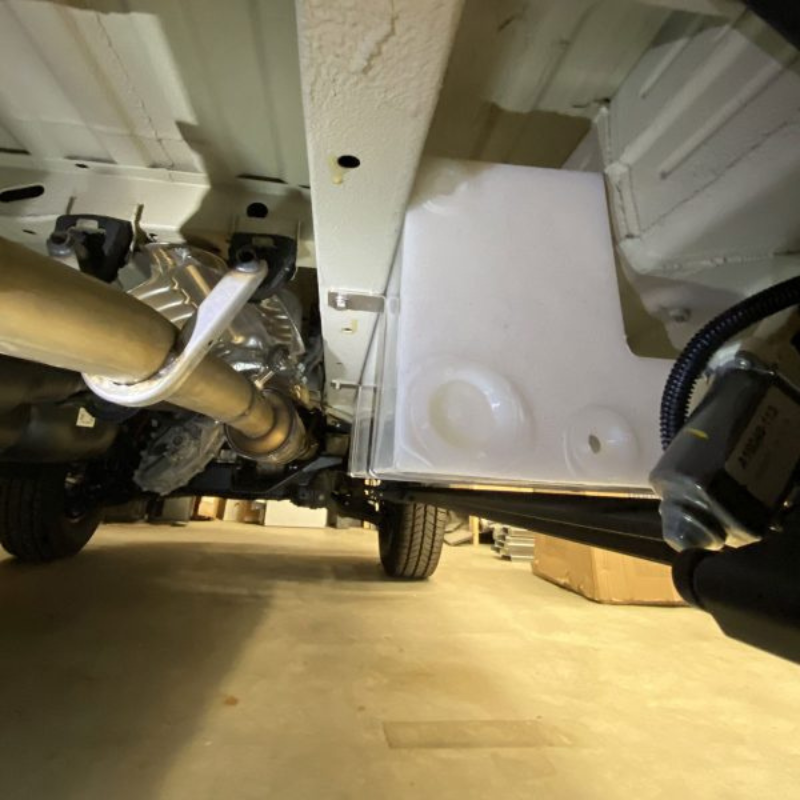

• Passenger side, under slider door step area
• May fit other makes and models, confirm dimensions before ordering
• Compatible with AMP Research PowerStep Electric Running Boards for 2019-2021 Mercedes Sprinter (part #76264-01A), may be compatible with additional running boards
